Mutoh Xpertjet xpj 1682 WR

  • Home
  • Mutoh Xpertjet xpj 1682 WR
...
...

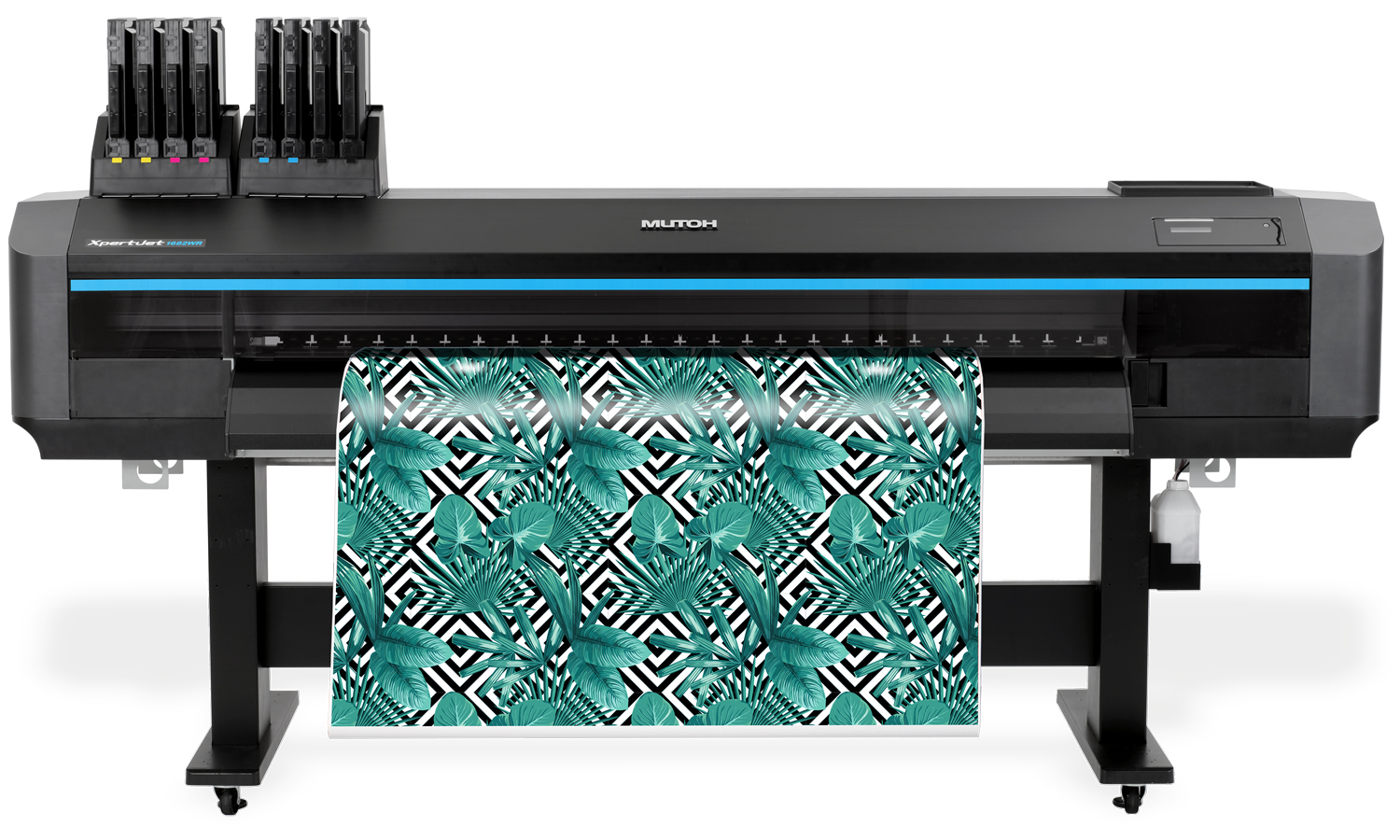

XpertJet XPJ-1682WR

The XpertJet 1682WR 64″ is a high-speed water-based inkjet printer with a new platform that inherits the properties of the XpertJet series. The XPJ-1682WR provides improved usability and reduces operational workload which will ensure high-quality prints, high productivity outputs, and user-friendly operation. A newly developed multi-stage pressurizing system enhances media feed stability for a wide range of media.
MUTOH original dye-sublimation transfer ink (DH21) provides optimum print quality and a wide color gamut. The DH21 ink is available in a 4-color CMYK configuration with large-capacity ink bags (1,000ml or 2,200ml) and new front-access ink cases supporting prolonged continuous printing. The XPJ-1682WR delivers high-quality graphics onto a wide range of materials such as trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms, and more.

  • The successor to Mutoh’s popular, award winning ValueJet 1638WX.
  • Transfer sublimation printing up to 1625 mm (63.97”)
  • Two gold plated piezo drop on demand heads on board, drop sizes from 2.8 pl to 33.9 pl
  • Typical production speeds between 10 m²/h and 48 m²/h
  • 2x4 or up to 8 colour setup
  • Enhanced media handling & transport
  • Ready for volume printing : 30, 40 or 100 kg motorized take up systems
  • Environmentally friendly printing - high level of operator safety

  • Print Technology-Drop-on-demand Micro Piezo Inkjet Technology
  • Print Head-2 (staggered setup
  • Nozzle Configuration - 180 nozzles x 8 lines/head
  • Drop Mass Range (pl)- 2.8 to 33.9 pl
  • Head Heights- Low: 1.5 mm / Middle: 2.5 mm / High: 4.0 mm
  • Resolution Range - 360 x 360 dpi up to 1440 x 1440 dpi

  • 500 mm (19.96") - 1625 mm (63,97”)
  • Max. Print Width 1615 mm (63,58”)
  • Max. Media Thickness 0.3 / 1.3 / 2.8 mm *
  • Max. media thickness is specified per head heigh

  • High precision aluminium rail mechanism for extremely accurate ink dot placement and stable printing
  • Improved media feed mechanism with newly designed media feed flanges and multi-level pinch rollers with adaptable pressure and individual disable function for worry-free media transport
  • Illuminated print platform and new intuitive OLED display
  • Mutoh Intelligent Interweaving on board to deliver spot on print quality
  • Automated bi-directional alignment and media feed adjustment via built-in colour sensor.
  • Media Tracker feature to easily track remaining media left on a part-used roll

In-store textile décor graphics and displays, personalised home decoration, textile banners, fast fashion, shirts and sportswear and much more. Personalised products on all types of polyester coated or polyester based rigids, gadgets and flexible materials.
