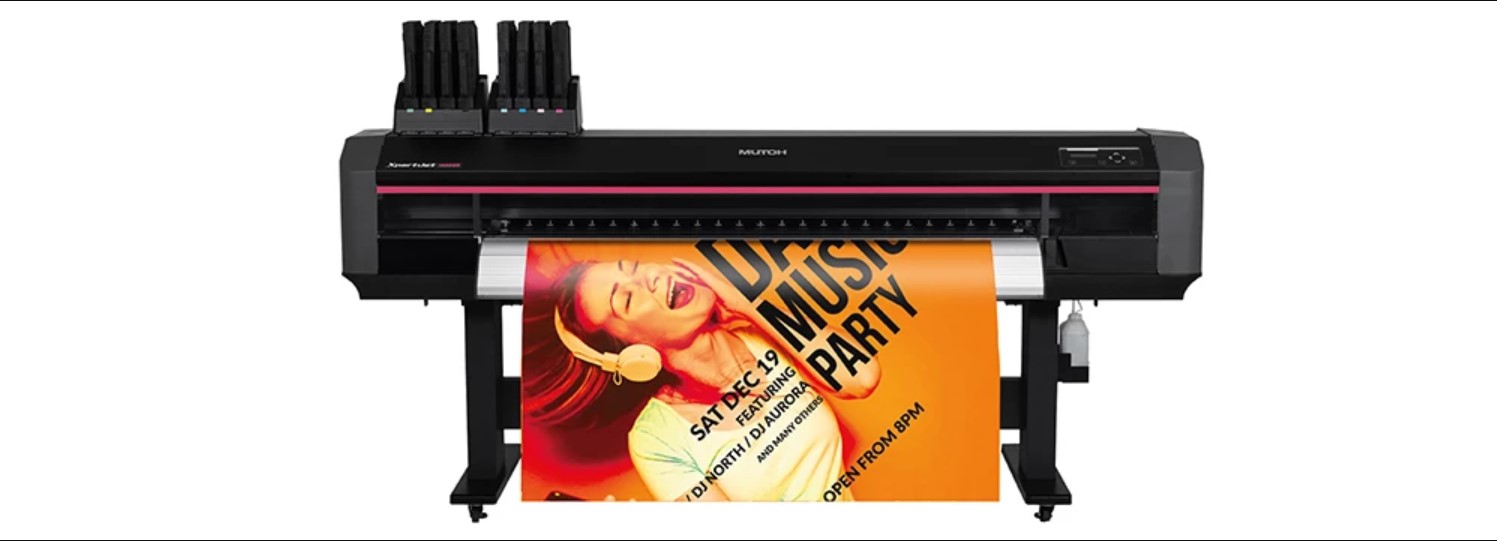

XpertJet 1682SR
Creating durable prints on coated and uncoated substrates up to 1625 mm (63.97”), Mutoh’s XpertJet 1682SR wide format printer has been specifically developed for high quality volume production of sign and display graphics, for long term outdoor applications as well as durable prints for indoor use. The printer produces posters, backlit signage, wall coverings, point-of-sale displays, fine art reproduction, vehicle graphics, stickers and much more. The dual head XpertJet 1682SR printer will push the boundaries of speed, quality and ease of use.
- Piezo drop on demand sign and display printer - 64”/162 cm
- High precision aluminum extrusion for extremely accurate ink dot placement, new cosmetics, new print platen and smart Printed Circuit Board box design
- Excellent user experience ranking : Illuminated print platform, new multi-language intuitive OLED display, automated bidirectional alignment via integrated colour sensor and remote printer monitoring.
- For starters or established print shops needing extra versatility and flexibility as well as for businesses focusing on the combination of speed production and top quality print work.
- Print head 2
- Nozzle Configuration 180 nozzles x 8 lines/head
- Drop Mass Range (pl) 3.5 to 35
- Max. Media width 1625 mm (63.97")
- Max. Print Width 1615 mm (63.58")
- Max. Media Thickness 0.3 / 1.3 / 2.8 mm
- Media Measurements Ø 150 mm / 2" or 3 " / 30 kg
- Ink Type MS41 / UMS
- Ink Volume / Colours 300 & 1000 ml / 1000 ml - CMYK, Lc, Lm, Lk, Or
The 54” (137 cm) wide XpertJet 1341SR Pro sign & display printer will deliver everything you have come to expect from a Mutoh wide format printer – a robustly built and reliable printer, delivering you high quality output – first time, every time.
The successor to the award winning ValueJet 1324X model, the XPJ-1341SR-P has our new AccuFine extra wide piezo print head on board, delivering best in class drop placement accuracy and i-screen, our new weaving algorithm which suppresses banding even further. The VerteLith RIP integrates Mutoh proprietary Clear Tone Screening, delivering the best gradients and skin tones, free of any noise.

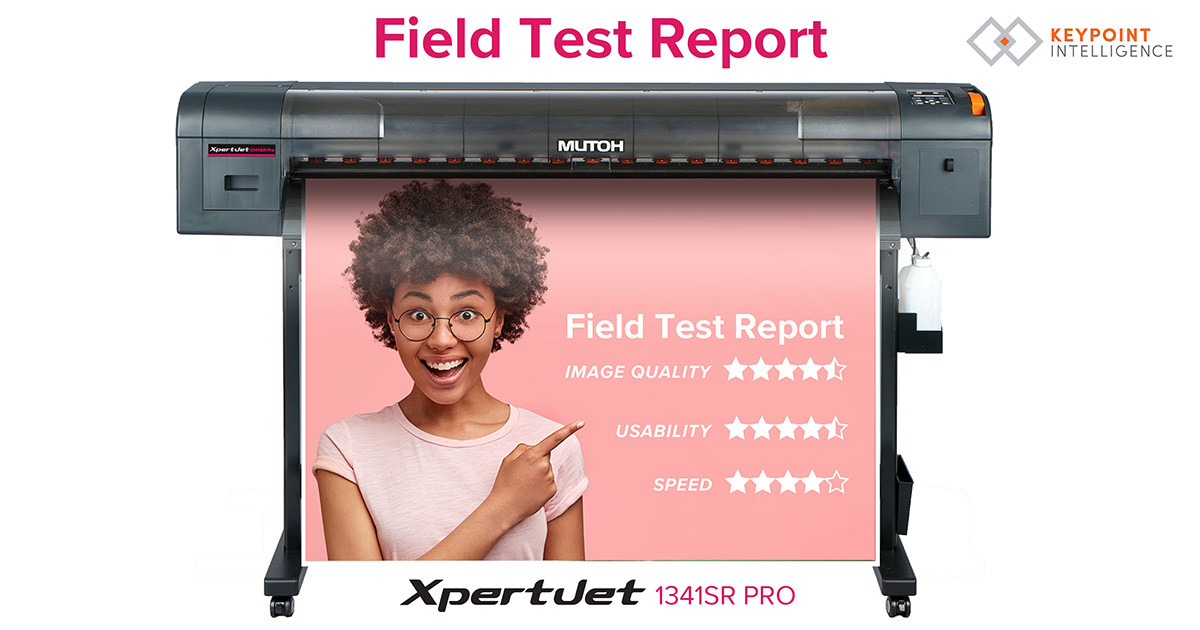

XpertJet 1341SR Pro
Product Highlights
- Very compact sign & display printer - 54” / 137 cm
- New i-screen weaving suppresses banding even further
- New VerteLith Clear Tone Screening delivers best gradients and skin tones
- Quality Up: best in class drop placement accuracy
- Quality Up: Unrivalled user assistance : multiple automated features delivering increased efficiency and productivity
- GREENGUARD Gold certified MS31 inks – highest level!
- Motorised take up systems : 20 & 30 kgs

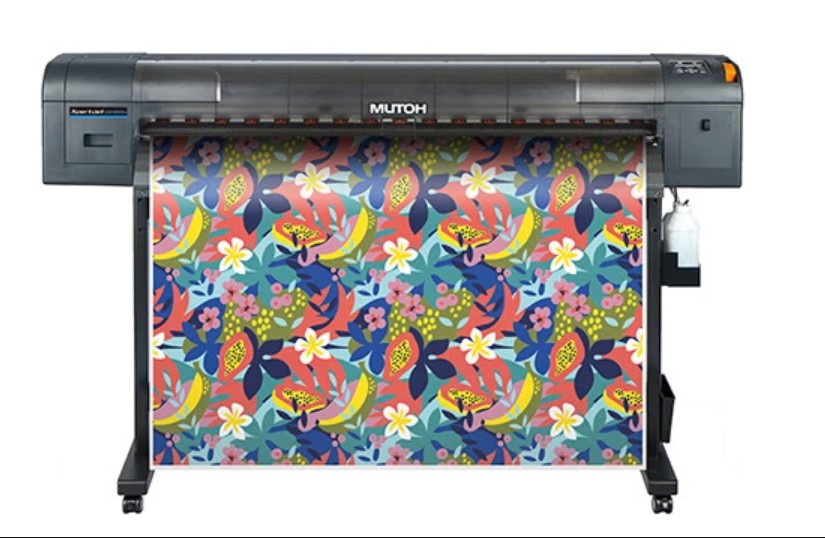

XpertJet 1341WR Pro
The XpertJet 1341WR Pro has Mutoh’s ultra-wide AccuFine 1600 piezo variable drop print head on board, delivering best in class drop placement accuracy and i-screen, our new weaving algorithms which suppress banding even further.
Mutoh DS3 series all round dye sublimation inks with increased colour density deliver reduced ink consumption, faster drying and compatibility with lightweight papers. The inks come in degassed 1 kg pouches for reliable jetting, excellent image definition and sharpness.
The XPJ-1341WR Pro delivers consistent quality for volume production runs as well as short print runs. A short learning curve towards consistent production is possible thanks to the integrated sensor enabling multiple automated adjustments and optional motorised take-up systems.
- Water based inkjet printing up to 1371 mm (54”) wide
- AccuFine 1600 extra wide print head on board : Double gain : speed and quality !
- New i-screen weaving technology delivers exceptional print quality
- Three different print head heights
- Production speeds : 11.8, 15.2, 20.1 and 29.2 m²/h
- 4 colour setup
- Unrivalled useability thanks to multiple new unique Mutoh core technologies
- Environmentally friendly printing - high level of operator safety
- Space saver design – safe & easy to use
